Schmied SHU8004 Extreme Series Urinal Sensor Flush Valve with LED (Back Inlet)
Schmied SHU8004 urinal sensor flush valve · concealed · AC/DC, back inlet
Supplied and installed by us.
We source the unit and coordinate its installation — no juggling a separate seller and installer. One WhatsApp, one written quote, one team accountable for the agreed scope.
We'll confirm stock and any installation scope during published operating hours. Or add to cart and send a full order at once.
A public track record you can check.
You're not just buying the unit — our team coordinates its installation on the same quote, with registrations and store metrics shown plainly below.
- Documented issue review
- One contact for follow-up
- Coverage stated in writing
Why we stock the Schmied.

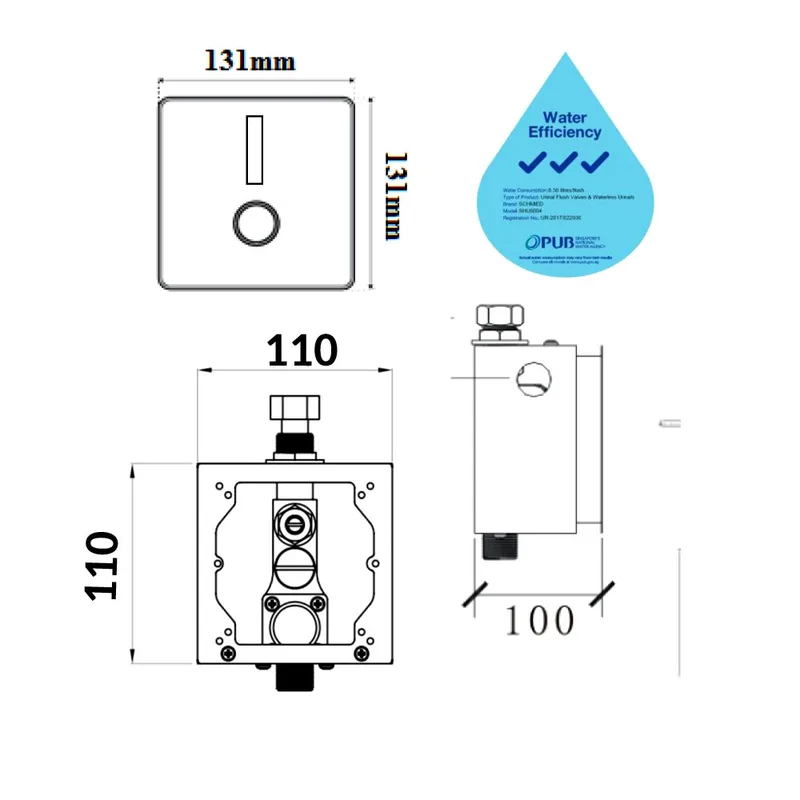

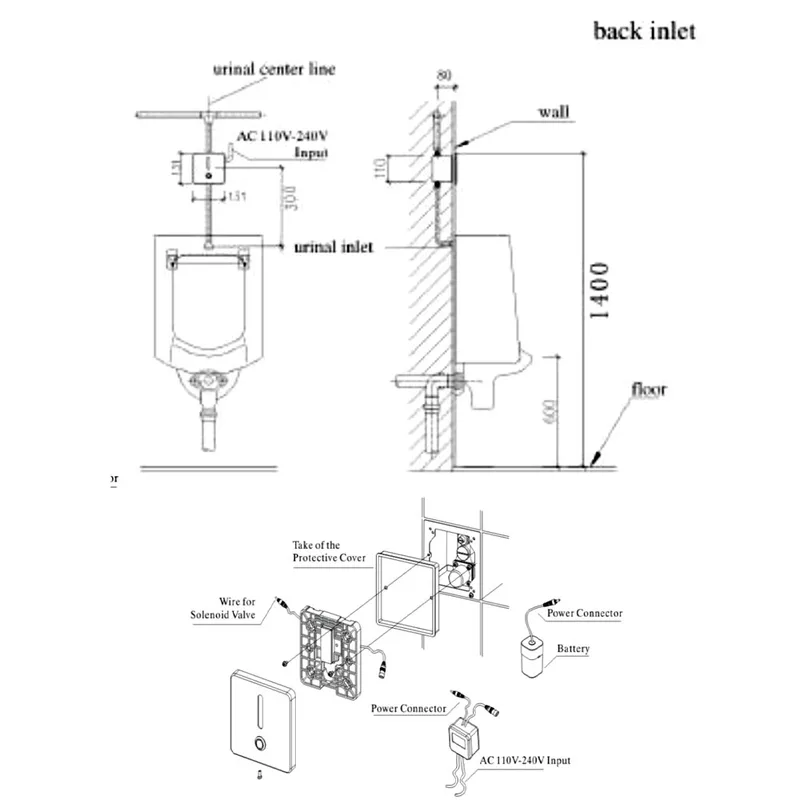

Sized at 131 x 131mm with a 304 stainless faceplate, the SHU8004 is a concealed back-inlet urinal sensor flush valve from the Extreme series. It accepts wide-range AC110-240V mains with a DC6V battery backup and carries an LED manual-override button. The 300 x 700mm flush pipe and rubber bush are supplied, sensing is adjustable 35-65cm, and each cycle flushes 2-5L. Supply and installation can be quoted after we confirm the model, site conditions and any regulated trade scope.
Everything you'd ask before ordering.
