AWS 910ACEL Recessed Box Type Sensor Urinal Flush Valve c/w Manual Bypass & Lock
AWS 910ACEL urinal sensor flush valve · concealed box · manual bypass · AC/DC
Supplied and installed by us.
We source the unit and coordinate its installation — no juggling a separate seller and installer. One WhatsApp, one written quote, one team accountable for the agreed scope.
We'll confirm stock and any installation scope during published operating hours. Or add to cart and send a full order at once.
A public track record you can check.
You're not just buying the unit — our team coordinates its installation on the same quote, with registrations and store metrics shown plainly below.
- Documented issue review
- One contact for follow-up
- Coverage stated in writing
Why we stock the AWS.

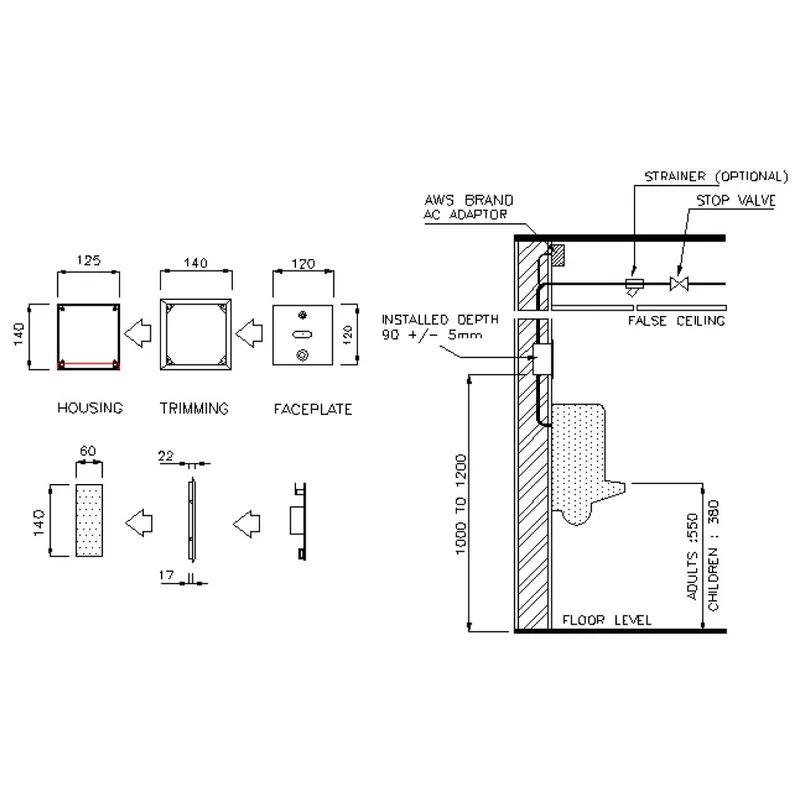

The AWS 910ACEL is a concealed box-type sensor urinal flush valve for solid walls over 100mm thick, built for vandal-resistant, touch-free service in high-traffic washrooms. A manual bypass and lock act as a fail-safe so the urinal keeps flushing through a power outage. It runs on 230VAC/12VDC at 500mA, takes a PT 1/2" inlet and 5/8" flush pipe, and works across a 0.7-6 bar dynamic pressure range. WELS rates it at 3 ticks (0.5 l/min) or 2 ticks (0.7 l/min), with a stainless steel, brass, FRP and ABS build. Supply and installation can be quoted after we confirm the model, site conditions and any regulated trade scope.
Everything you'd ask before ordering.
