TECE 9300201 TECE Construct Toilet Module Concealed Cistern

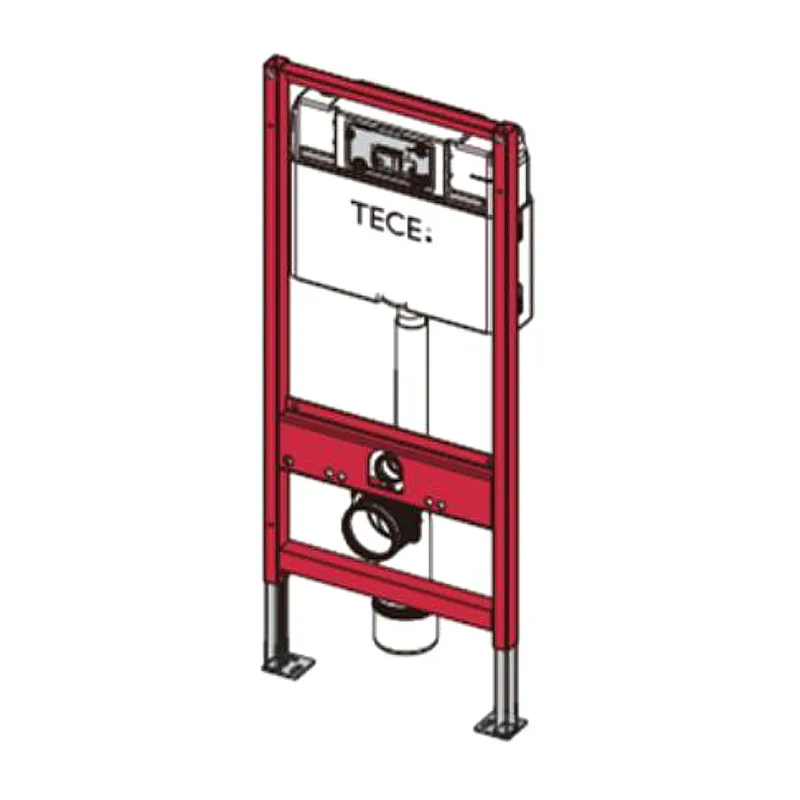

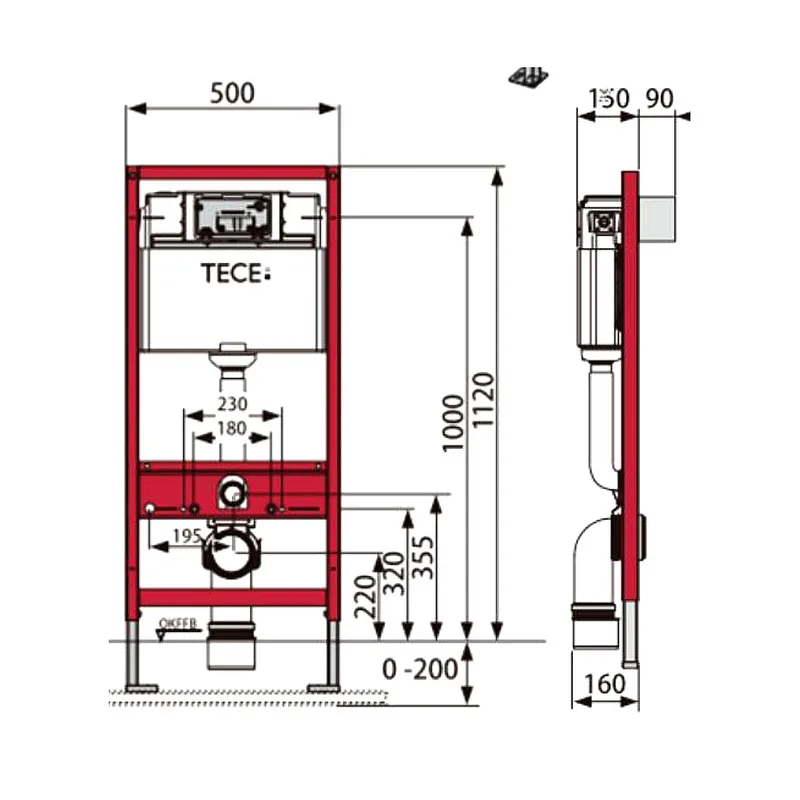

The TECE Construct 9300201 is the tall 1120mm wall-hung toilet module, supplied fully pre-assembled with a TECE concealed cistern for either front or top actuation. It rides on a powder-coated self-supporting frame measuring 500 x 150 x 1120mm and mounts behind a finished wall, complete with a DN 90 drain bend, PP connector, retaining bolts and depth-adjustable attachments. The 10-litre cistern is tested to Singapore SS574 at 4.5 litres and DIN EN 14055 at 6 litres, with 7.5/9-litre options, a 3-litre partial flush, and single or dual-flush selectable by plate. It accepts any TECE flush plate. Supply and installation can be quoted after we confirm the model, site conditions and any regulated trade scope.
